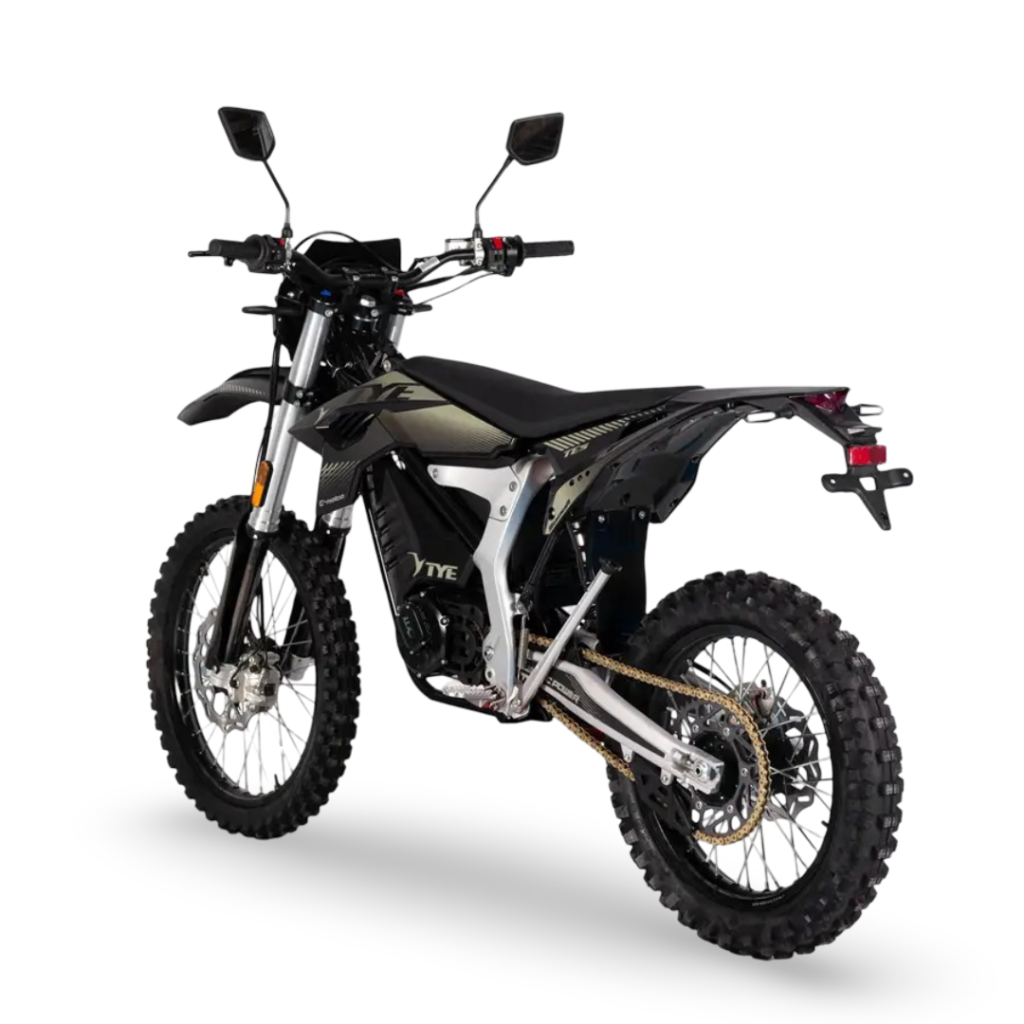

2024 72v 20kW ELECTRIC DIRT BIKE ON ROAD



  • Version: ON-road, Gearless
  • Battery: 72V40Ah/72V50Ah /72V60Ah
  • Motor: 20kw
  • Color: Cool Black
  • MSRP:$9999



GALLERY

FEATURES

  • Off-Road Electric Motorcycles
    Phenomenal Dirt eBike
    All New Electric Technology
  • Unprecedented Power
    Peak Power:  20kw
    Wheel Torque:1200N.M
  • Enjoy Speedy Acceleration
    0~100m:4.8s
    Top Speed:  125Km/h
    Range:150Km
  • Brushless Direct Current Motor
    Special Tailor-made for off-road
    Mid-drive Motor
    High-performance,
    Four-speed Switching
    Accelerate fast,
    Air-cooled,Easy to dissipate heat
  • Intelligent Controller
    The most advanced intelligent variable frequency Tech
    Starting torque is large, start fast, and stable, more linear silent operation more accurate to give users excellent experience.
  • Suspension System
    Advanced MNT BRAND
    hydraulic shock absorber, custom-made special inverted front fork, using advanced MNT WP technology, adjustable in height, suitable for different off-road scenes, greatly improving the practicality, and bringing out the performance of the motorcycle to the fullest
    Rear suspension: hydraulic shock absorber, adopting mature technology progressive damping suspension, adjustable in height, suitable for different off-road scenes
  • Battery Pack
    Effective Battery Pack ,Fast Charging
    Leading CATL Lithium ion Battery
    High Energy, High Efficiency, Safe & Reliable
    Advanced Smart BMS system Connect with Blue tooth
  • Frame
    All-aluminum Alloy Design
    Strong and Tough Frame
    Weight:110kg (238 lbs with Battery)
    Max Loading  150kg    (330 lbs)
  • Tires
    High-quality Tires for Off-Road
    Front Tire:(80/100—21)
    Rear Tire:(110/90—18)
  • Brake System
    Hydraulic Disc Brake

SPECIFICATIONS

Motor

  • Mid-drive,BLDC Motor with Four-speed Forward Gears
  • Peak Power(KW)20
  • Wheel Peak Torque(N)1000
  • Voltage (V) 72
  • Rated Power(W)5000

Battery

  • Lithium Battery CATL 72V 50Ah /60Ah/40Ah/73ah
  • Battery Rated Voltage (V) 72
  • Battery Rated Capacity(A)40Amp-Hour
  • Peak output Current(A) 300
  • Continuous output Current(A) 150
  • Charging Time (H) 3-4H
  • Range (KM) 150

Controller/Suspension/Brake

  • Controller
  • Front Suspension Adjustable MNT BRAND
  • Rear Suspension Adjustable MNT BRAND
  • Front&Rear Brake Hydraulic Disc Brake

Chassis

  • Frame 6061 Forge Aluminium Alloy+Metal Q345B
  • Rear Fork Aluminium Alloy
  • Front&Rear Rim 7116 code Alloy
  • Front&Rear Hub Cast
  • HandleBar Aluminium Alloy
  • Brake & Clutch Laver Aluminium Alloy
  • Steering Aluminium Alloy 7075
  • Drive Chain 520
  • Drive Sprocket Steal
  • Front&Rear Disc Brake Pad CD.Copper.Base

Display

  • Display Meter LCD
  • All set of Light LED

Dimensions&Weight

  • Size(mm)2120*840*1225
  • Wheelbase(mm)1424
  • Seat Hight(mm)900
  • Ground Clearance(mm)318
  • Front&Rear Tire 80/100-21,110/90-18
  • Weight(Kg)110
  • Carrying Capacity(Kg)150
